A Lecture on Greenhouse Gases


Greenhouse Gases: Lecture I
Chem 002
Angel C. de Dios


Chemistry of the Environment (Greenhouse Effect)
"The Earth system follows laws which scientists strive to understand,"
said Dr. F. Sherwood Rowland, a Nobel laureate in chemistry.
"The public deserves rational decisionmaking based on the best scientific advice about what is likely to happen, not what political entities might wish to happen."
From: Preeminent Scientists Protest Bush Administration's Misuse of Science




When I first added "Greenhouse Gases" as a topic in my General Chemistry, I shared with another Filipino American scientist the slides I prepared for that first lecture. This was back in 2008 and the following was his response.
My son, Alexander, was two years old then. I took the following photos when he was just several months old.
Yes, there are 13 questions in the next homework on Sapling. These are due a week from now, but I would like you to work on the first 13 questions before this week is over.
There are no experiments in the laboratory course that deal with this topic.
Yes, 20 % of the exam of the exam on Monday will be on this topic.

Josefino "Joey" Comiso is a scientist at NASA. His contribution to the study of climate change is his observation of the decline in Arctic sea ice during the past decades.


Here is my son with me and other Filipino American scientists in the DC area. Joey Comiso is in this photo.
Here Are Current Observations.


This past January is the hottest in record (from 1880-2020) for temperatures across the globe. In fact, this past winter was the warmest ever on land.


And as Joey Comiso noted, these warmer temperatures are evident in the extent of sea ice in the Arctic region. It is lower than the range observed for the past decades.
We also see a shrinking of ice cover in the Antarctic.

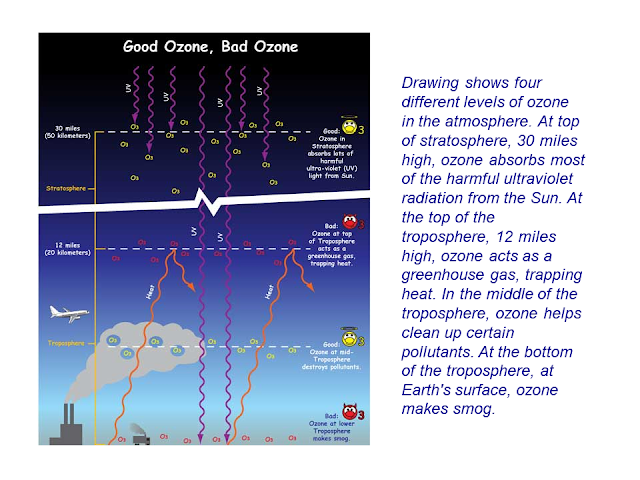

In order to understand what is going on, we need to examine the earth's atmosphere. The earth's atmosphere can be divided into several layers:
  • troposhere; This is the layer directly above us and it stretches up to 10 kilometers in altitude.
  • stratosphere: This is right above the trophosphere and here we will find the ozone layer. This is the part of the atmosphere where there is an equilibrium between O3(ozone) and O2(oxygen) molecules. The ozone layer protects us from harmful ultraviolet rays from the sun.
  • mesosphere: This lies above the stratosphere, stretching 50 to 85 kilometers from the earth's surface. This is where the temperature decreases with height.
  • thermosphere: This lies highest. This is where molecules are ionized by the sun's radiation. Due to these ionizations, the temperature increases as one goes up through this layer.

Ozone is beneficial in the stratosphere. But on the surface, ozone is very harmful. Inside the troposhpere, ozone is an example of a greenhouse gas.


In order to relate temperature to light, we need to consider the electromagnetic spectrum. Light is composed of photons. And each photon has a characteristic wavelength or frequency. It is either the wavelength or the frequency that allows us to determine the energy that a photon carries. How this energy relates to energy is given by Boltzmann's constant (on a per molecule or photon basis), or the ideal gas constant, if we are dealing with molar quantities.

We compare hv against kT. At room temperature, 298 K, we are near the infrared region. Thus, what is relevant to our planet is infrared radiation.

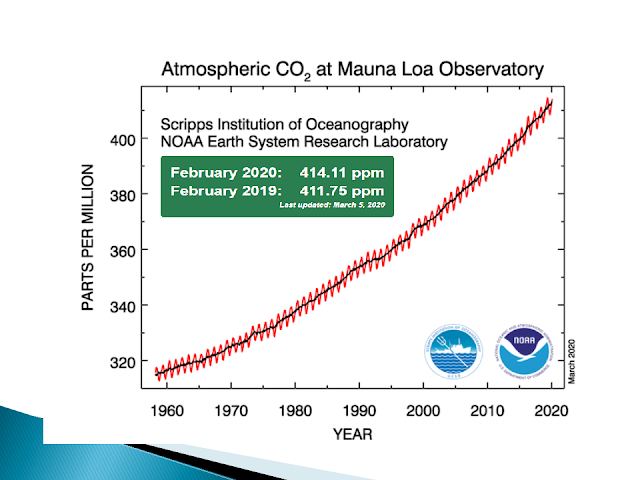

The rise and fall of CO2 in a year corresponds to the changes in season, which correlates to the times of the year when trees have leaves and are therefore performing photosynthesis. During the spring and summer, there is a drop in CO2 since photosynthesis uses CO2. Nonetheless, the overall trend, year over year since the 60's is continuous rise in COlevels in the earth's atmosphere.

Below is the first global satellite of COlevels, indicating what is observed in Hawaii is happening all over the world.


There is no ambiguity with regard to the source of the additional COin our atmosphere. We are the source.

Although CO2 emissions come from automobiles, a big contributor is power generation. We generate electricity by burning coal, oil or natural gas. Burning coal is the biggest contributor in this sector followed by natural gas. We produce COnot only because we drive our cars, but also by heating or air conditioning our homes, keeping our food fresh in our refrigerators, and watching television. COproduction is attached to our current way of life.





Using the table above, methane has the highest energy released per mole of CO2. To see this, one divides the number seen in the last column by the number of COproduced. For methane, this is 890/1 = 890 kJ/mol. For ethane, this is 1560/2 = 780 kJ/mol.
